Exercise 7: Interacting with tiles

Please complete Exercise 6 first, since the steps below build upon your work from that project.

For the last six exercises, we've been making a maze game that still has one major flaw: the ball can move right through the walls of the maze! In this exercise, we'll finally fix that.

Let's bounce

1. Open your project called "BOUNCE BRIX" that you saved from Exercise 6. On the CODE screen, find the file called "PLAYER" which should contain code like this:

   # ADD THE BALL'S VELOCITY, MOVING THE BALL BY ONE STEP
   .X + .DX -> .X
   .Y + .DY -> .Y

   In Exercise 4, we discussed how DX and DY track the velocity of the ball.



   How to make a ball bounce?

   In a video game, a ball bouncing against a wall involves collision detection and rigid body dynamics. These topics are quite deep, even for simple 2D games, but today a very basic strategy will be enough:

   1. Try moving the ball one step (DX or DY).
   2. Check whether the ball now touches a wall.
   3. If so, bounce by undoing our move and reversing the sign of DX or DY. For example if DX was $-2$ (moving to the left in steps of 2 pixels), then we would change it to $2$ (moving to right in steps of 2 pixels).

   How to check whether the ball is touching a wall? In the same the "PLAYER" file, we previously used GET_TILE_AT_XY() to check whether the ball is touching a diamond (tile #2):

   # READ THE TILE NUMBER AT THE BALL'S CENTER
   # (FIND THE CENTER BY ADDING 8, SINCE OUR SPRITE IS 16 X 16)
   VAR TILE
   ENGINE::TILE_LAYER_B.GET_TILE_AT_XY(.X + 8, .Y + 8) -> TILE

   IF TILE = 2 THEN # DIAMOND
     # ERASE THE DIAMOND WITH USING TILE #0
     ENGINE::TILE_LAYER_B.SET_TILE_AT_XY(.X + 8, .Y + 8, 0)
     SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
     MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
   END IF

2. Let's start with some refactoring. Refactoring means moving code around without changing what it does. We can refactor to make the code easier to understand, or to prepare for adding a new feature. Let's move the GET_TILE_AT_XY() logic into a new function called CHECK_COLLISIONS(). This function will check to see what the ball is touching. If it is touching a wall, the function returns TRUE to indicate that we should BOUNCE.

   You can copy and paste this code into your "PLAYER" file. You don't need to retype everything by hand.

   (Click to see the "PLAYER" file with these changes)

   The "PLAYER" file:

   CLASS PLAYER EXTENDS ACTOR
     # REMEMBER THE BALL'S VELOCITY
     VAR DX
     VAR DY

     HOOK THINK()
       IF GAMEPAD::LEFT AND .DX >= -2 THEN
         .DX - 1 -> .DX
       END IF
       IF GAMEPAD::RIGHT AND .DX <= 2 THEN
         .DX + 1 -> .DX
       END IF
       IF GAMEPAD::UP AND .DY >= -2 THEN
         .DY - 1 -> .DY
       END IF
       IF GAMEPAD::DOWN AND .DY <= 2 THEN
         .DY + 1 -> .DY
       END IF

       # ADD THE BALL'S VELOCITY, MOVING THE BALL BY ONE STEP
       .X + .DX -> .X
       .Y + .DY -> .Y

       .CHECK_COLLISION()

       # MAKE THE CAMERA FOLLOW THE BALL
       ENGINE::SET_CAMERA_CX(.X)
       ENGINE::SET_CAMERA_CY(.Y)
     END HOOK

     FUNC CHECK_COLLISION(): BOOL
       VAR BOUNCE: BOOL
       FALSE -> BOUNCE

       # (FIND THE CENTER BY ADDING 8, SINCE OUR SPRITE IS 16 X 16)
       VAR CHECK_X, CHECK_Y
       .X + 8 -> CHECK_X
       .Y + 8 -> CHECK_Y

       VAR TILE_LAYER_B: TILE_LAYER
       ENGINE::TILE_LAYER_B -> TILE_LAYER_B

       # READ THE TILE NUMBER AT THE BALL'S CENTER
       VAR TILE
       TILE_LAYER_B.GET_TILE_AT_XY(CHECK_X, CHECK_Y) -> TILE

       IF TILE = 2 THEN # DIAMOND
         # ERASE THE DIAMOND WITH USING TILE #0
         TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
         SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
         MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
       END IF

       RETURN BOUNCE
     END FUNC
   END CLASS

3. Next, we need to add some logic to put TRUE into BOUNCE when we touch a wall. The empty spaces on our map use TILE #0, so for simplicity, let's assume that any other tile besides #0 is a kind of wall:

   IF TILE = 2 THEN # DIAMOND
     # ERASE THE DIAMOND WITH USING TILE #0
     TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
     SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
     MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
   ELSIF TILE <> 0 THEN
     # THE BALL HIT A WALL OF SOME KIND
     TRUE -> BOUNCE
   END IF
   (Click to see the "PLAYER" file with these changes)

   The "PLAYER" file:

   CLASS PLAYER EXTENDS ACTOR
     # REMEMBER THE BALL'S VELOCITY
     VAR DX
     VAR DY

     HOOK THINK()
       IF GAMEPAD::LEFT AND .DX >= -2 THEN
         .DX - 1 -> .DX
       END IF
       IF GAMEPAD::RIGHT AND .DX <= 2 THEN
         .DX + 1 -> .DX
       END IF
       IF GAMEPAD::UP AND .DY >= -2 THEN
         .DY - 1 -> .DY
       END IF
       IF GAMEPAD::DOWN AND .DY <= 2 THEN
         .DY + 1 -> .DY
       END IF

       # ADD THE BALL'S VELOCITY, MOVING THE BALL BY ONE STEP
       .X + .DX -> .X
       .Y + .DY -> .Y

       .CHECK_COLLISION()

       # MAKE THE CAMERA FOLLOW THE BALL
       ENGINE::SET_CAMERA_CX(.X)
       ENGINE::SET_CAMERA_CY(.Y)
     END HOOK

     FUNC CHECK_COLLISION(): BOOL
       VAR BOUNCE: BOOL
       FALSE -> BOUNCE

       # (FIND THE CENTER BY ADDING 8, SINCE OUR SPRITE IS 16 X 16)
       VAR CHECK_X, CHECK_Y
       .X + 8 -> CHECK_X
       .Y + 8 -> CHECK_Y

       VAR TILE_LAYER_B: TILE_LAYER
       ENGINE::TILE_LAYER_B -> TILE_LAYER_B

       # READ THE TILE NUMBER AT THE BALL'S CENTER
       VAR TILE
       TILE_LAYER_B.GET_TILE_AT_XY(CHECK_X, CHECK_Y) -> TILE

       IF TILE = 2 THEN # DIAMOND
         # ERASE THE DIAMOND WITH USING TILE #0
         TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
         SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
         MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
       ELSIF TILE <> 0 THEN
         # THE BALL HIT A WALL OF SOME KIND
         TRUE -> BOUNCE
       END IF

       RETURN BOUNCE
     END FUNC
   END CLASS

4. Great, now we are ready to bounce! The code for moving in the X direction (left/right) looks like .X + .DX -> .X. Let's add some logic to check whether the ball touches a wall. If so, we'll undo the movement, then bounce:

   # TRY MOVING
   .X + .DX -> .X
   IF .CHECK_COLLISION() THEN
     .X - .DX -> .X  # UNDO OUR MOVE
     -.DX -> .DX     # BOUNCE
   END IF
   (Click to see the answer)

   The "PLAYER" file:

   CLASS PLAYER EXTENDS ACTOR
     # REMEMBER THE BALL'S VELOCITY
     VAR DX
     VAR DY

     HOOK THINK()
       IF GAMEPAD::LEFT AND .DX >= -2 THEN
         .DX - 1 -> .DX
       END IF
       IF GAMEPAD::RIGHT AND .DX <= 2 THEN
         .DX + 1 -> .DX
       END IF
       IF GAMEPAD::UP AND .DY >= -2 THEN
         .DY - 1 -> .DY
       END IF
       IF GAMEPAD::DOWN AND .DY <= 2 THEN
         .DY + 1 -> .DY
       END IF

       # ADD THE BALL'S VELOCITY, MOVING THE BALL BY ONE STEP
       .X + .DX -> .X
       IF .CHECK_COLLISION() THEN
         .X - .DX -> .X  # UNDO OUR MOVE
         -.DX -> .DX     # BOUNCE
       END IF

       .Y + .DY -> .Y

       # MAKE THE CAMERA FOLLOW THE BALL
       ENGINE::SET_CAMERA_CX(.X)
       ENGINE::SET_CAMERA_CY(.Y)
     END HOOK

     FUNC CHECK_COLLISION(): BOOL
       VAR BOUNCE: BOOL
       FALSE -> BOUNCE

       # (FIND THE CENTER BY ADDING 8, SINCE OUR SPRITE IS 16 X 16)
       VAR CHECK_X, CHECK_Y
       .X + 8 -> CHECK_X
       .Y + 8 -> CHECK_Y

       VAR TILE_LAYER_B: TILE_LAYER
       ENGINE::TILE_LAYER_B -> TILE_LAYER_B

       # READ THE TILE NUMBER AT THE BALL'S CENTER
       VAR TILE
       TILE_LAYER_B.GET_TILE_AT_XY(CHECK_X, CHECK_Y) -> TILE

       IF TILE = 2 THEN # DIAMOND
         # ERASE THE DIAMOND WITH USING TILE #0
         TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
         SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
         MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
       ELSIF TILE <> 0 THEN
         # THE BALL HIT A WALL OF SOME KIND
         TRUE -> BOUNCE
       END IF

       RETURN BOUNCE
     END FUNC
   END CLASS

5. Click "Run" to run your program. The ball should now bounce left/right, but not up/down.

   Can you add the corresponding logic for the Y direction?

   (Click to see the answer)

   The "PLAYER" file:

   CLASS PLAYER EXTENDS ACTOR
     # REMEMBER THE BALL'S VELOCITY
     VAR DX
     VAR DY

     HOOK THINK()
       IF GAMEPAD::LEFT AND .DX >= -2 THEN
         .DX - 1 -> .DX
       END IF
       IF GAMEPAD::RIGHT AND .DX <= 2 THEN
         .DX + 1 -> .DX
       END IF
       IF GAMEPAD::UP AND .DY >= -2 THEN
         .DY - 1 -> .DY
       END IF
       IF GAMEPAD::DOWN AND .DY <= 2 THEN
         .DY + 1 -> .DY
       END IF

       # ADD THE BALL'S VELOCITY, MOVING THE BALL BY ONE STEP
       .X + .DX -> .X
       IF .CHECK_COLLISION() THEN
         .X - .DX -> .X  # UNDO OUR MOVE
         -.DX -> .DX     # BOUNCE
       END IF

       .Y + .DY -> .Y
       IF .CHECK_COLLISION() THEN
         .Y - .DY -> .Y  # UNDO OUR MOVE
         -.DY -> .DY     # BOUNCE
       END IF

       # MAKE THE CAMERA FOLLOW THE BALL
       ENGINE::SET_CAMERA_CX(.X)
       ENGINE::SET_CAMERA_CY(.Y)
     END HOOK

     FUNC CHECK_COLLISION(): BOOL
       VAR BOUNCE: BOOL
       FALSE -> BOUNCE

       # (FIND THE CENTER BY ADDING 8, SINCE OUR SPRITE IS 16 X 16)
       VAR CHECK_X, CHECK_Y
       .X + 8 -> CHECK_X
       .Y + 8 -> CHECK_Y

       VAR TILE_LAYER_B: TILE_LAYER
       ENGINE::TILE_LAYER_B -> TILE_LAYER_B

       # READ THE TILE NUMBER AT THE BALL'S CENTER
       VAR TILE
       TILE_LAYER_B.GET_TILE_AT_XY(CHECK_X, CHECK_Y) -> TILE

       IF TILE = 2 THEN # DIAMOND
         # ERASE THE DIAMOND WITH USING TILE #0
         TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
         SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
         MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
       ELSIF TILE <> 0 THEN
         # THE BALL HIT A WALL OF SOME KIND
         TRUE -> BOUNCE
       END IF

       RETURN BOUNCE
     END FUNC
   END CLASS

   With these changes, the ball should now bounce like this:



   The ball goes into the wall?

   If you look closely, you may notice that the ball moves partway into the wall before bouncing. Can you guess why? It has something to do with this code:

   # (FIND THE CENTER BY ADDING 8, SINCE OUR SPRITE IS 16 X 16)
   VAR CHECK_X, CHECK_Y
   .X + 8 -> CHECK_X
   .Y + 8 -> CHECK_Y

   We'll fix the problem in Exercise 8. Don't worry about it for now.

Brittle tiles

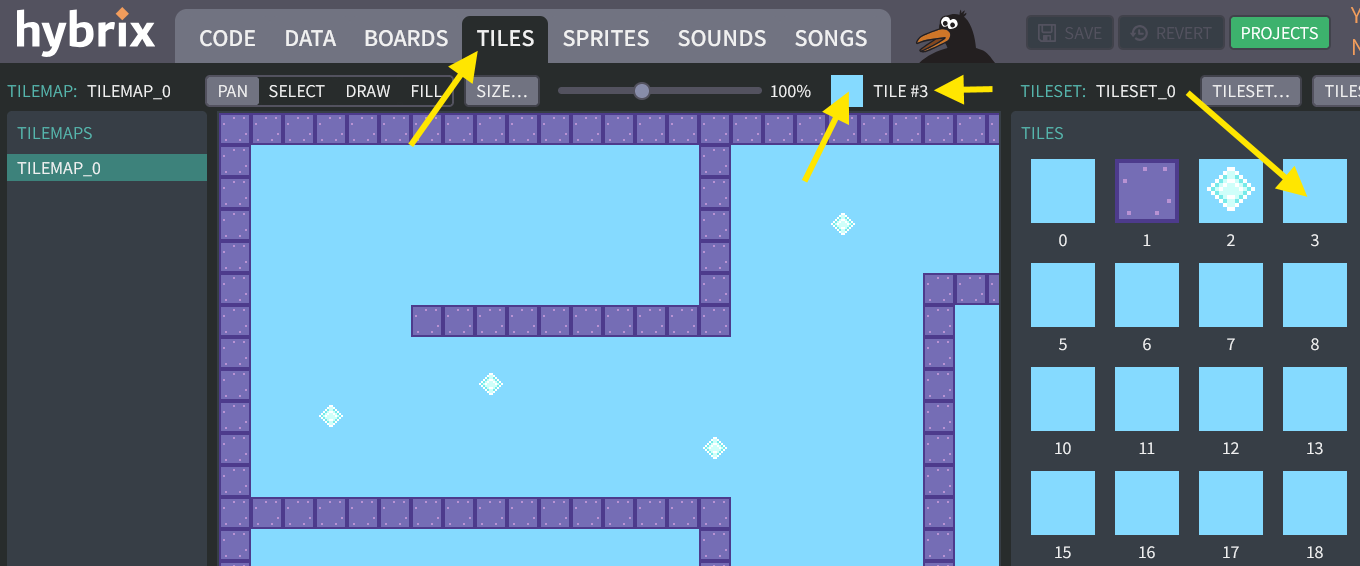

6. Let's add a "brittle" tile that disappears after the ball bounces against it. Go to the TILES screen. Click on blue box labeled "3" on the right side of the screen. A the top of your screen, the small blue box should change to say "TILE #3", like this:

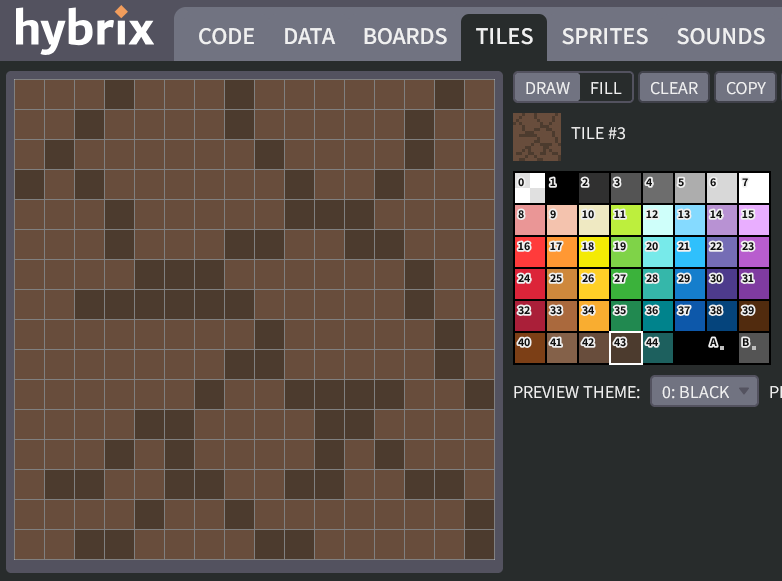

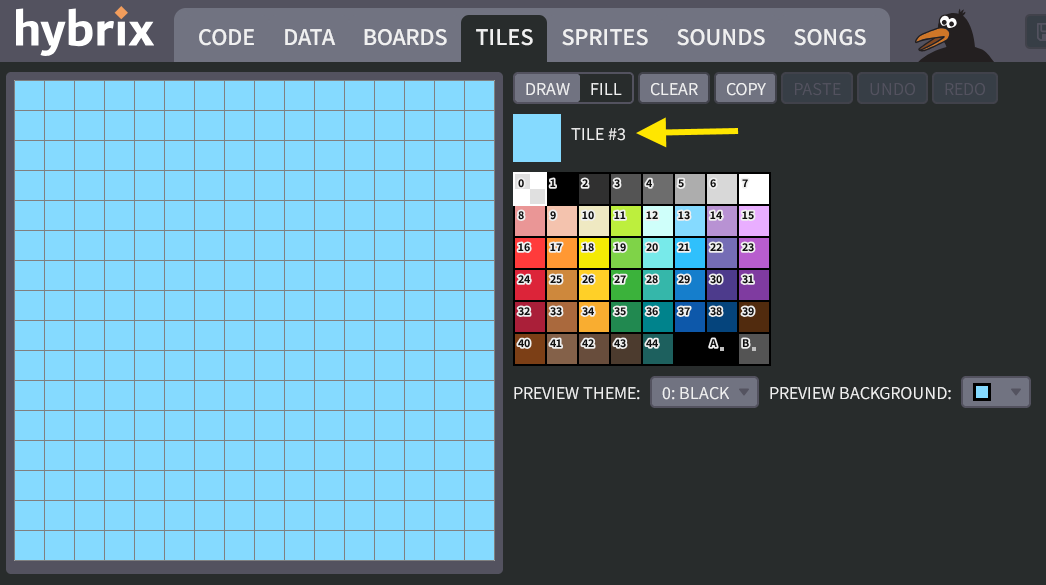

7. Click on the small tile. This will open the tile editor. Make sure it says "TILE #3":



   Fill the tile with color #42 (bonbon). Then draw some cracks using color #43 (offroad):



   It's okay if your tile looks somewhat different from the picture above.

8. After you finish drawing, click the "DONE" button to return to the TILES screen. Click to draw a wall that is made from tile #3:



9. Now we need to write some code to handle this tile. Let's look at the existing rules:

   IF TILE = 2 THEN # DIAMOND
     # ERASE THE DIAMOND WITH USING TILE #0
     TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
     SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
     MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
   ELSIF TILE <> 0 THEN
     # THE BALL HIT A WALL OF SOME KIND
     TRUE -> BOUNCE
   END IF

   For a diamond, we do this:

   • Erase the diamond tile
   • Play the diamond sound
   • Increase the score

   For a wall, we simply:

   • Bounce

   A brittle wall (tile #3) should combine some of each behavior:

   • Erase the brittle tile
   • Bounce

   Can you add an ELSIF to handle tile #3?

   (Click to see the answer)

   The "PLAYER" file:

   CLASS PLAYER EXTENDS ACTOR
     # REMEMBER THE BALL'S VELOCITY
     VAR DX
     VAR DY

     HOOK THINK()
       IF GAMEPAD::LEFT AND .DX >= -2 THEN
         .DX - 1 -> .DX
       END IF
       IF GAMEPAD::RIGHT AND .DX <= 2 THEN
         .DX + 1 -> .DX
       END IF
       IF GAMEPAD::UP AND .DY >= -2 THEN
         .DY - 1 -> .DY
       END IF
       IF GAMEPAD::DOWN AND .DY <= 2 THEN
         .DY + 1 -> .DY
       END IF

       # ADD THE BALL'S VELOCITY, MOVING THE BALL BY ONE STEP
       .X + .DX -> .X
       IF .CHECK_COLLISION() THEN
         .X - .DX -> .X  # UNDO OUR MOVE
         -.DX -> .DX     # BOUNCE
       END IF

       .Y + .DY -> .Y
       IF .CHECK_COLLISION() THEN
         .Y - .DY -> .Y  # UNDO OUR MOVE
         -.DY -> .DY     # BOUNCE
       END IF

       # MAKE THE CAMERA FOLLOW THE BALL
       ENGINE::SET_CAMERA_CX(.X)
       ENGINE::SET_CAMERA_CY(.Y)
     END HOOK

     FUNC CHECK_COLLISION(): BOOL
       VAR BOUNCE: BOOL
       FALSE -> BOUNCE

       # (FIND THE CENTER BY ADDING 8, SINCE OUR SPRITE IS 16 X 16)
       VAR CHECK_X, CHECK_Y
       .X + 8 -> CHECK_X
       .Y + 8 -> CHECK_Y

       VAR TILE_LAYER_B: TILE_LAYER
       ENGINE::TILE_LAYER_B -> TILE_LAYER_B

       # READ THE TILE NUMBER AT THE BALL'S CENTER
       VAR TILE
       TILE_LAYER_B.GET_TILE_AT_XY(CHECK_X, CHECK_Y) -> TILE

       IF TILE = 2 THEN # DIAMOND
         # ERASE THE DIAMOND WITH USING TILE #0
         TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
         SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
         MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
       ELSIF TILE = 3 THEN # BRITTLE TILE
         TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
         TRUE -> BOUNCE
       ELSIF TILE <> 0 THEN
         # THE BALL HIT A WALL OF SOME KIND
         TRUE -> BOUNCE
       END IF

       RETURN BOUNCE
     END FUNC
   END CLASS

The exit tile

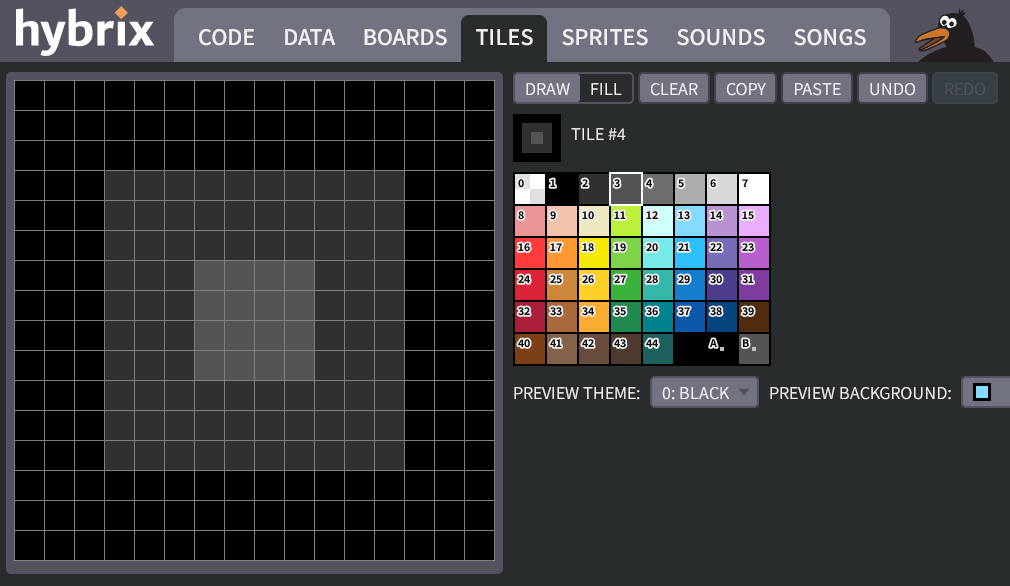

10. Let's add one more tile, that will teleport you to the next level of the game. We can use tile #4 for that. You can draw it however you like, but here's an idea using colors #1 (black), #2 (raven), and #3 (frypan):

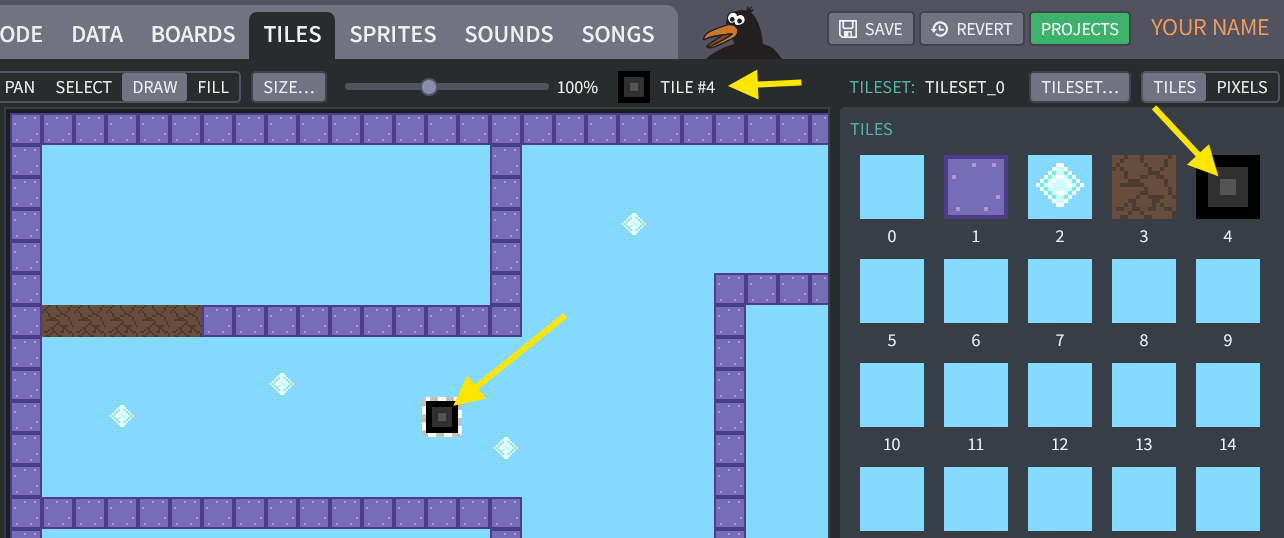

11. For testing purposes, let's put our exit tile near the start of our maze. Later, you can move it to the end:



A second maze level

12. When the ball reaches the exit, it will advance to the next level. Let's make a second tilemap. Go to the TILES screen, then click the "NEW TILEMAP" button:

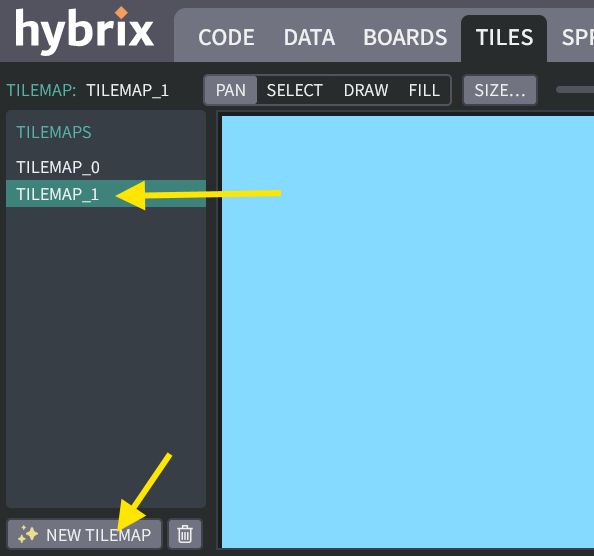

    Our first level was called TILEMAP_0. The second level will be called TILEMAP_1.

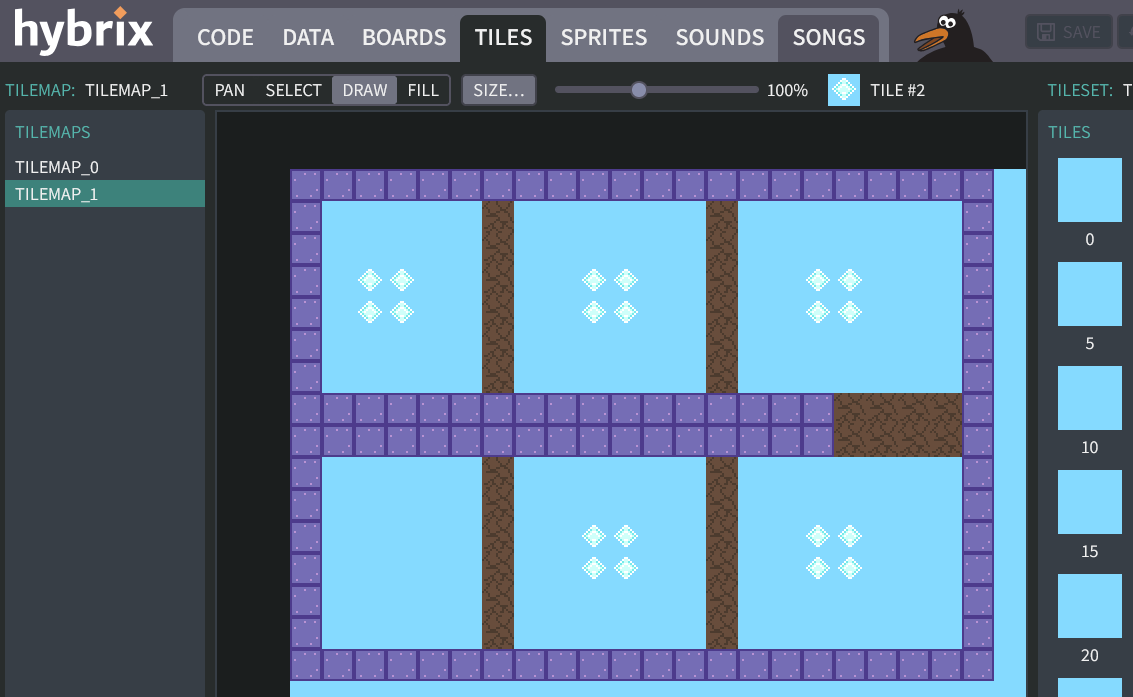

13. Draw a second maze. It can be anything you like, but make sure it's noticeably different from TILEMAP_0. Maybe something like this:

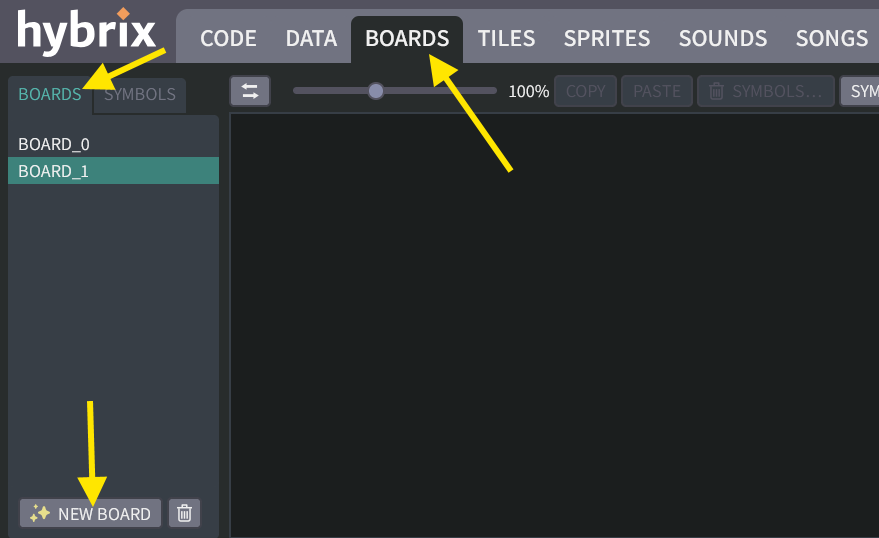

14. Next, go to the BOARDS screen. Click on the "BOARDS" tab. Then click the "NEW BOARD" button:

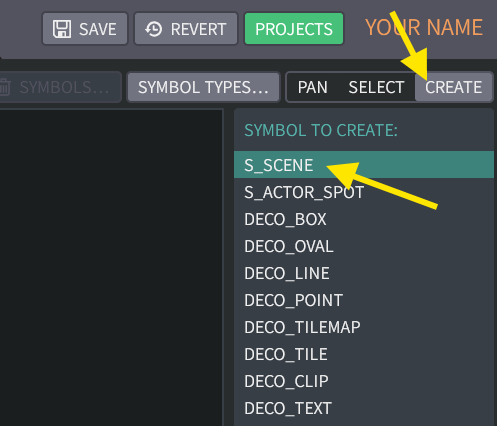

15. Click the "CREATE" button, then choose S_SCENE:



    Make sure BOARD_1 is selected. Click in the upper-left corner of the board to create the new scene:

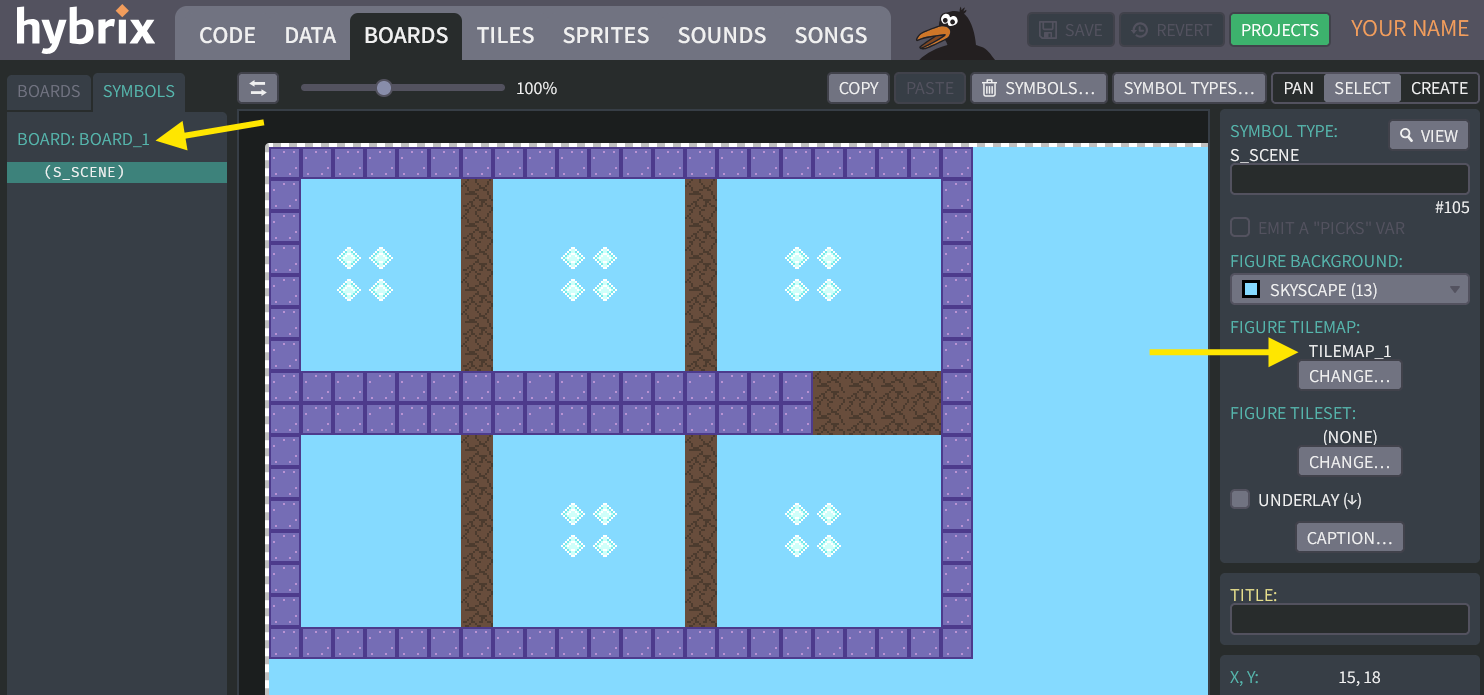

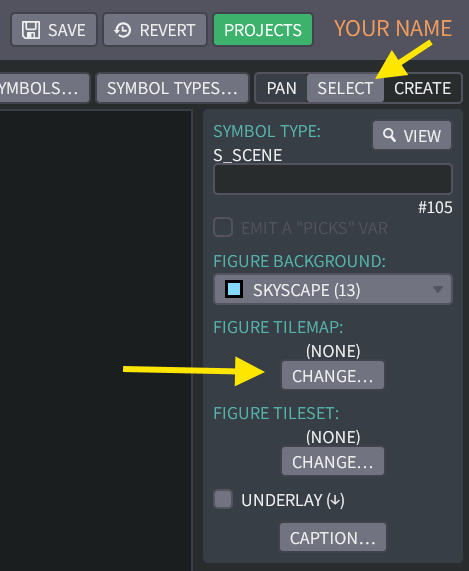

16. Click the "SELECT" button. On the panel at the right side of your screen, find the "FIGURE TILEMAP" section. Click the "CHANGE…" button and choose TILEMAP_1.



    Your new maze should now appear on BOARD_1:

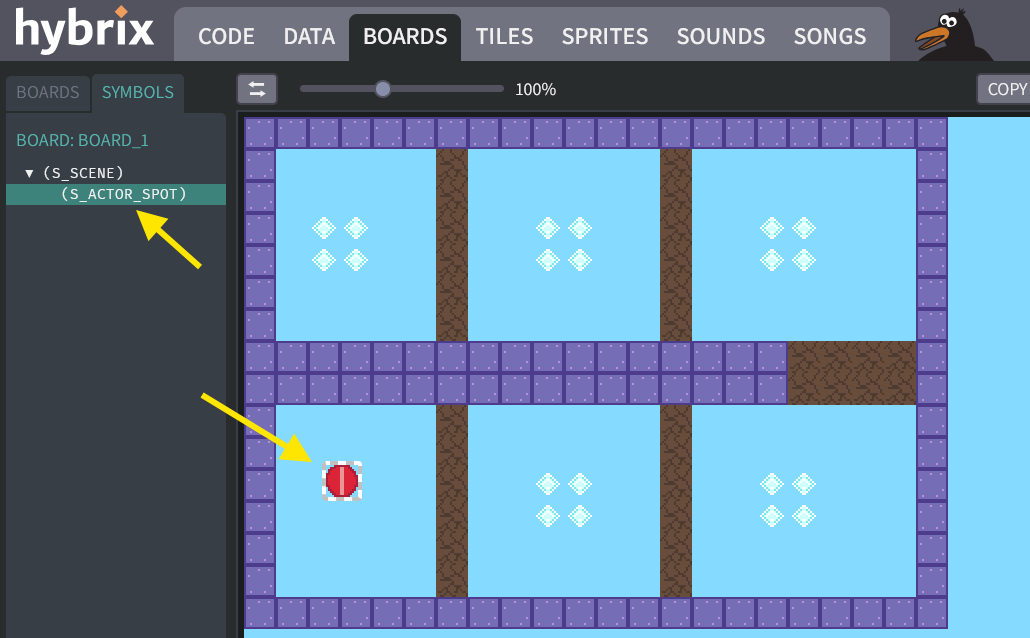

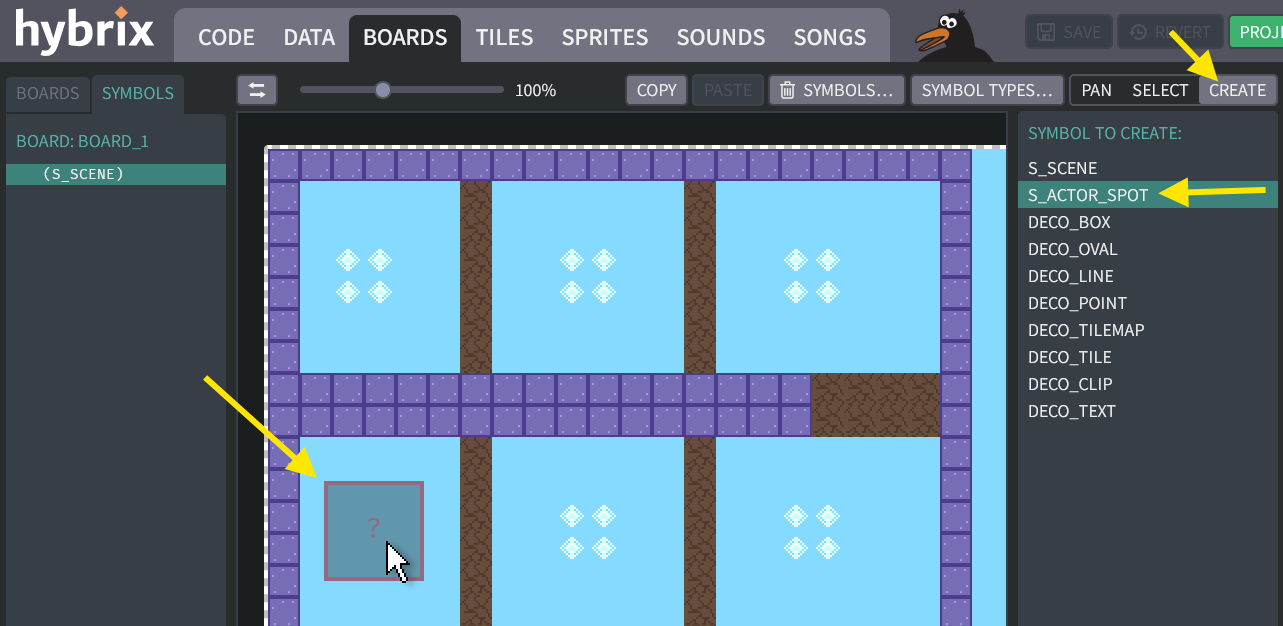

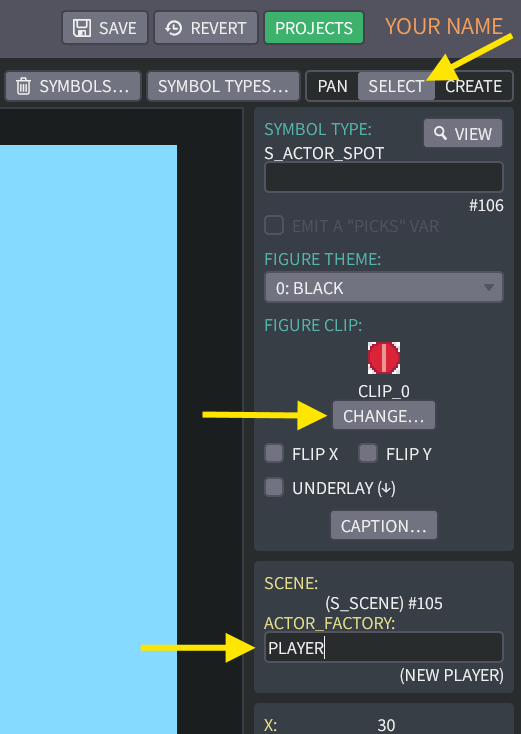

17. Let's also create an S_ACTOR_SPOT to indicate where the ball will start in this level:



18. Choose CLIP_0 for its "FIGURE CLIP". And type PLAYER for its "ACTOR FACTORY":



    On the board, you should now see the red ball in your maze, like this:



Writing the code

How to change to a new level?

Up until now, we used the THINK() function of the PLAYER for collecting diamond tiles, for bouncing off of walls, and for breaking the brittle tiles. The "exit" tile will take us to a new level. Each level is an S_SCENE with a tilemap maze, as well as an actor for the player's red ball, and maybe other actors in the future for other creatures. When we go to the next level, an entirely new scene is loaded, and the old one is discarded.

If we try to do this in the middle of the THINK() stage, we can end up with old actors trying to think or trying to interact with the old tilemap. Instead, changing levels needs to happen in the main LOOP.

But how will the main loop know whether the player reached the exit tile? We can use a variable REACHED_EXIT to signal this.

19. Go to the CODE screen, and click on the "MAIN" file. After Exercise 6, it should still have the code shown below:

    (Click to see the "MAIN" file from Exercise 6)

    The "MAIN" file: (OLD code)

    MODULE MAIN
      VAR DIAMOND_COUNT

      FUNC START()
        ENGINE::INIT()
        SOUND::INIT()
        CONSOLE::INIT()

        IF SYMBOLS::SCENES <> NULL AND SYMBOLS::SCENES.SIZE > 0 THEN
          SYMBOLS::SCENES[0].LOAD()
        END IF

        LOOP
          ENGINE::RENDER()
          ENGINE::WAIT_FOR_PAINT()
          ENGINE::THINK()
          SOUND::THINK()
          CONSOLE::THINK()

          MAIN::SHOW_SCORE()
        END LOOP
      END FUNC

      FUNC SHOW_SCORE()
        7 -> IO::MATTE_COLOR
        CONSOLE::PRINT("{END}{U}{CLL}{R}{9}{MAT} {$99} ")
        CONSOLE::PRINT_INT(MAIN::DIAMOND_COUNT)
        CONSOLE::PRINT(" ")
      END FUNC
    END MODULE

20. Replace your "MAIN" file with this new code instead:

    (Click to see the new code for the "MAIN" file)

    The "MAIN" file: (NEW code)

    MODULE MAIN
      VAR DIAMOND_COUNT
      VAR REACHED_EXIT: BOOL

      FUNC START()
        ENGINE::INIT()
        SOUND::INIT()
        CONSOLE::INIT()

        VAR LEVEL
        -1 -> LEVEL

        LOOP
          IF MAIN::REACHED_EXIT OR LEVEL < 0 THEN
            FALSE -> MAIN::REACHED_EXIT
            LEVEL + 1 -> LEVEL
            SYMBOLS::SCENES[LEVEL].LOAD()
          END IF

          ENGINE::RENDER()
          ENGINE::WAIT_FOR_PAINT()
          ENGINE::THINK()
          SOUND::THINK()
          CONSOLE::THINK()

          MAIN::SHOW_SCORE()
        END LOOP
      END FUNC

      FUNC SHOW_SCORE()
        7 -> IO::MATTE_COLOR
        CONSOLE::PRINT("{END}{9}{MAT}{U}{R} {$99} ")
        CONSOLE::PRINT_INT(MAIN::DIAMOND_COUNT)
        CONSOLE::PRINT(" ")
      END FUNC
    END MODULE

    The LEVEL variable starts at $-1$ so that when our game first starts, LEVEL + 1 will cause this code to load the first maze SYMBOLS::SCENES[0]. Later, when REACHED_EXIT becomes TRUE (which we will accomplish in Step 21), the above IF statement will load the second maze SYMBOLS::SCENES[1].

    You can add as many levels as you like, and each one's exit tile will load the next higher number level.

    (What if the player tries to exit from the last level? If LEVEL increases beyond the end of the array, your program may fail with an error "ARRAY INDEX OUT OF BOUNDS".)



    How do the scenes get into the array?

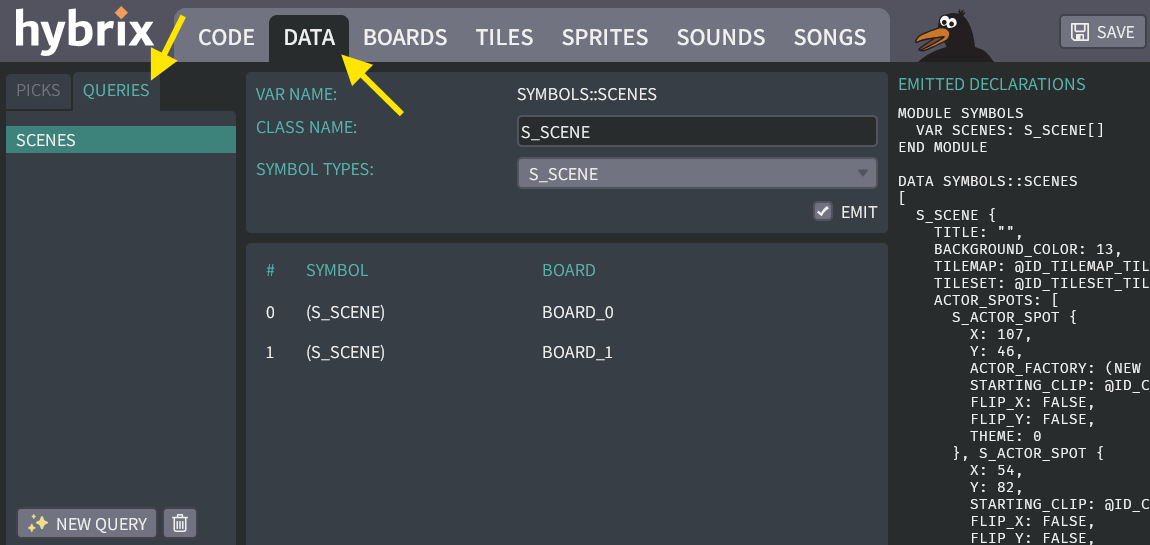

    The SYMBOLS::SCENES variable is an array that collects a list of all the S_SCENE symbols from your boards. If you go to the DATA screen, you can see that it is made using a query:



    This query searches every board, and finds every symbol whose type is S_SCENE, and puts them all into an array called SCENES. We'll learn more about the DATA screen in a future exercise.

21. Go to the CODE scene and open the "PLAYER" file. Now we just need to put TRUE -> MAIN::REACHED_EXIT whenever the player reaches our exit (tile #4).

    (Click to see the "PLAYER" file with these changes)

    The "PLAYER" file:

    CLASS PLAYER EXTENDS ACTOR
      # REMEMBER THE BALL'S VELOCITY
      VAR DX
      VAR DY

      HOOK THINK()
        IF GAMEPAD::LEFT AND .DX >= -2 THEN
          .DX - 1 -> .DX
        END IF
        IF GAMEPAD::RIGHT AND .DX <= 2 THEN
          .DX + 1 -> .DX
        END IF
        IF GAMEPAD::UP AND .DY >= -2 THEN
          .DY - 1 -> .DY
        END IF
        IF GAMEPAD::DOWN AND .DY <= 2 THEN
          .DY + 1 -> .DY
        END IF

        # ADD THE BALL'S VELOCITY, MOVING THE BALL BY ONE STEP
        .X + .DX -> .X
        IF .CHECK_COLLISION() THEN
          .X - .DX -> .X  # UNDO OUR MOVE
          -.DX -> .DX     # BOUNCE
        END IF

        .Y + .DY -> .Y
        IF .CHECK_COLLISION() THEN
          .Y - .DY -> .Y  # UNDO OUR MOVE
          -.DY -> .DY     # BOUNCE
        END IF

        # MAKE THE CAMERA FOLLOW THE BALL
        ENGINE::SET_CAMERA_CX(.X)
        ENGINE::SET_CAMERA_CY(.Y)
      END HOOK

      FUNC CHECK_COLLISION(): BOOL
        VAR BOUNCE: BOOL
        FALSE -> BOUNCE

        # (FIND THE CENTER BY ADDING 8, SINCE OUR SPRITE IS 16 X 16)
        VAR CHECK_X, CHECK_Y
        .X + 8 -> CHECK_X
        .Y + 8 -> CHECK_Y

        VAR TILE_LAYER_B: TILE_LAYER
        ENGINE::TILE_LAYER_B -> TILE_LAYER_B

        # READ THE TILE NUMBER AT THE BALL'S CENTER
        VAR TILE
        TILE_LAYER_B.GET_TILE_AT_XY(CHECK_X, CHECK_Y) -> TILE

        IF TILE = 2 THEN # DIAMOND
          # ERASE THE DIAMOND WITH USING TILE #0
          TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
          SOUND::PLAY_TRACK(ID_SOUND::SOUND_0, 0)
          MAIN::DIAMOND_COUNT + 1 -> MAIN::DIAMOND_COUNT
        ELSIF TILE = 3 THEN # BRITTLE TILE
          TILE_LAYER_B.SET_TILE_AT_XY(CHECK_X, CHECK_Y, 0)
          TRUE -> BOUNCE
        ELSIF TILE = 4 THEN # EXIT TILE
          TRUE -> MAIN::REACHED_EXIT
        ELSIF TILE <> 0 THEN
          # THE BALL HIT A WALL OF SOME KIND
          TRUE -> BOUNCE
        END IF

        RETURN BOUNCE
      END FUNC
    END CLASS

22. Click "RUN" to try your game. When the red ball touches the exit tile, the ball should teleport to your new maze (TILEMAP_1 from BOARD_1).

Great job! That's all for Exercise 7. In the next exercise, we'll fix the problem we noticed in Step 5, where the ball moves partway into the wall before bouncing.
